HUV10

VGA USB CAMERA

설명

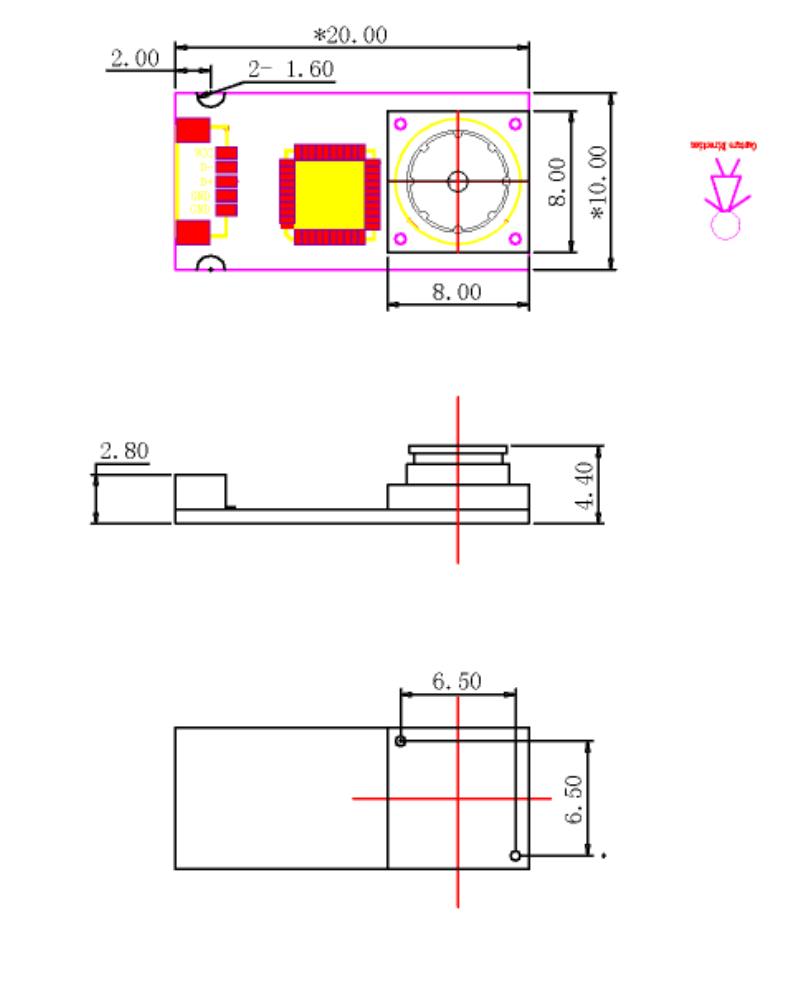

Module Dim.

 Module Spec.

ITEM Description
Product Name HUV10
Dimensions (mm)
(W x H x T)
20x10x4.4
Max RESOLUTION 640×480
Image Sensor
Size (inch)
1/6.5″
Sensor GC0308
Max Image Transfer Rate 30FPS @ VGA
OUTPUT Format Support YUV
Focus FIX
AEC/AGC/White Balance AUTO
Interface USB 2.0
UVC V1.0
Operating Temperature ( Operation )  -10℃ ~ 70℃
Temperature (Stable Image)  0℃ ~ 50℃
Power Consumption
Standby / Operating
TBD
OS Windows, Mac OS, Linux, Android  etc.
F/NO 2.8
FOV 65
