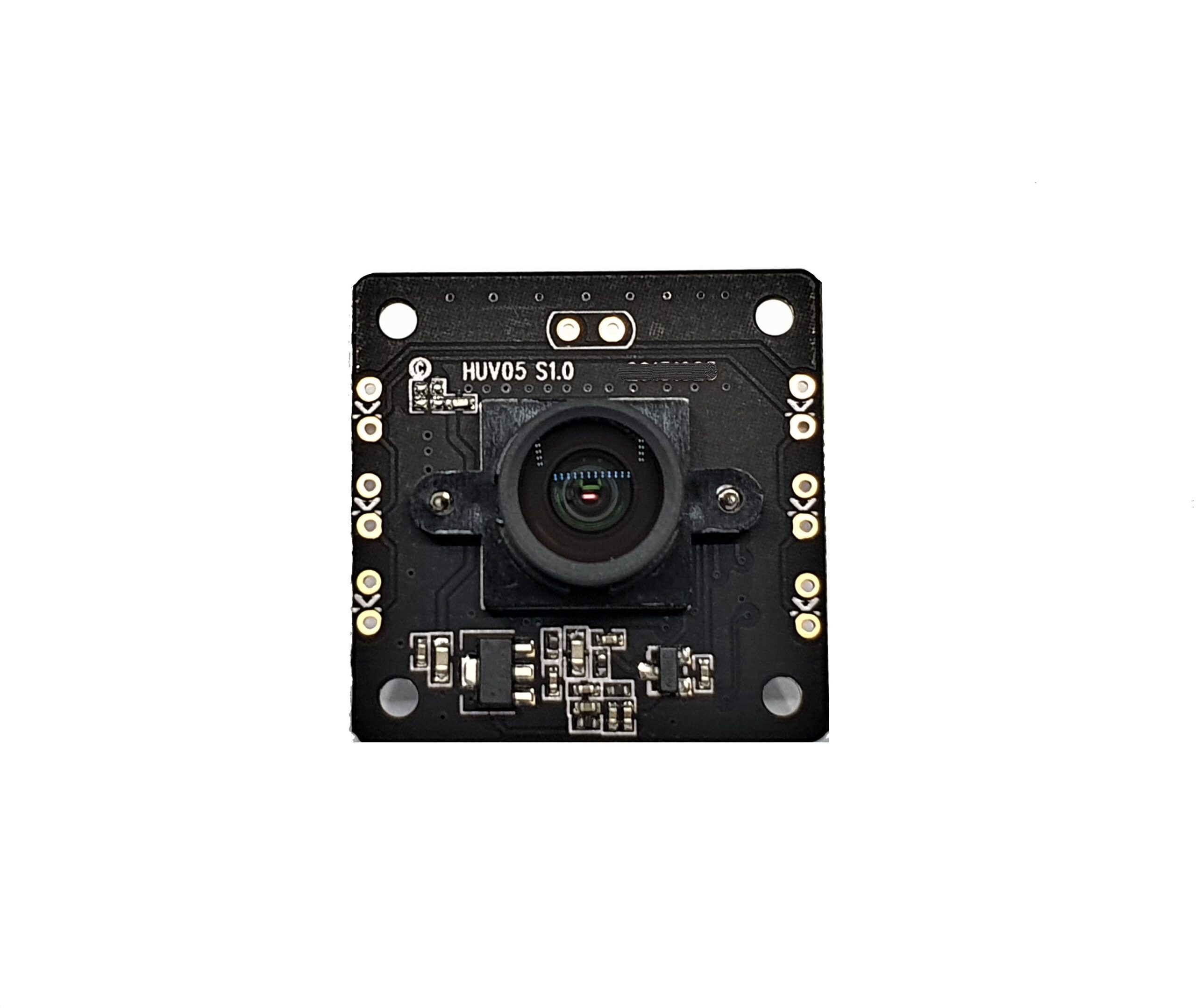

HUV05

VGA 60fps USB CAMERA

설명

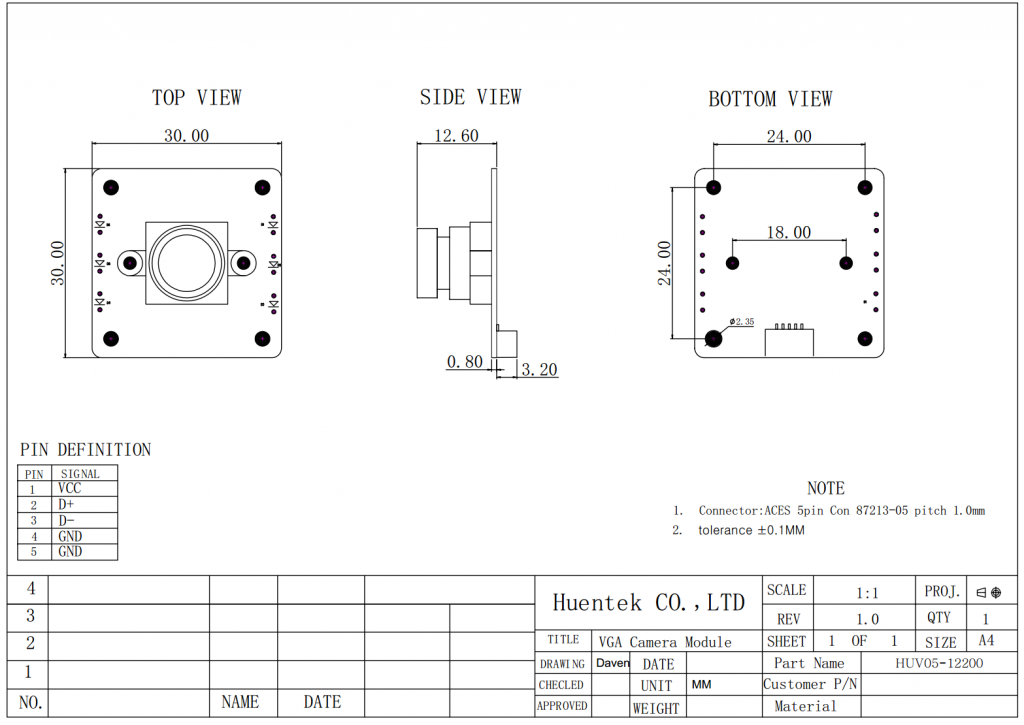

1.Dimension

.

.

.

2. Module Spec.

ITEM Description
Product Name HUV05
Dimensions (mm)
(W x H x T)
30x30xTBD
Max RESOLUTION 640×480
Image Sensor
Size (inch)
1/4″  ( 3:4 )
Sensor OV7725
Max Image Transfer Rate 60FPS @ VGA
OUTPUT Format Support YUV
Focus FIX
AEC/AGC/White Balance AUTO
Interface USB 2.0
UVC V1.0
Operating Temperature ( Operation )  -10℃ ~ 70℃
Temperature (Stable Image)  0℃ ~ 50℃
Power Consumption
Standby / Operating
110mA@5V
OS Windows, Mac OS, Linux, Android  etc.



3. Lens Spec

Lens P/N HULE12200
Sensor Size 1/4″
Resolution VGA
Recommended Sensor P/N POA030R, OV7725
Construction 2G2P
F/No 2.0
EFL ( mm ) 2.2
Optical FOV Vertical 60
Horizontal 72
Diagonal 90
TV Distortion 1.00%
Mount M8
Diameter (mm) 11.0
