HU520A

5M USB CAMERA

설명

1.Dimension

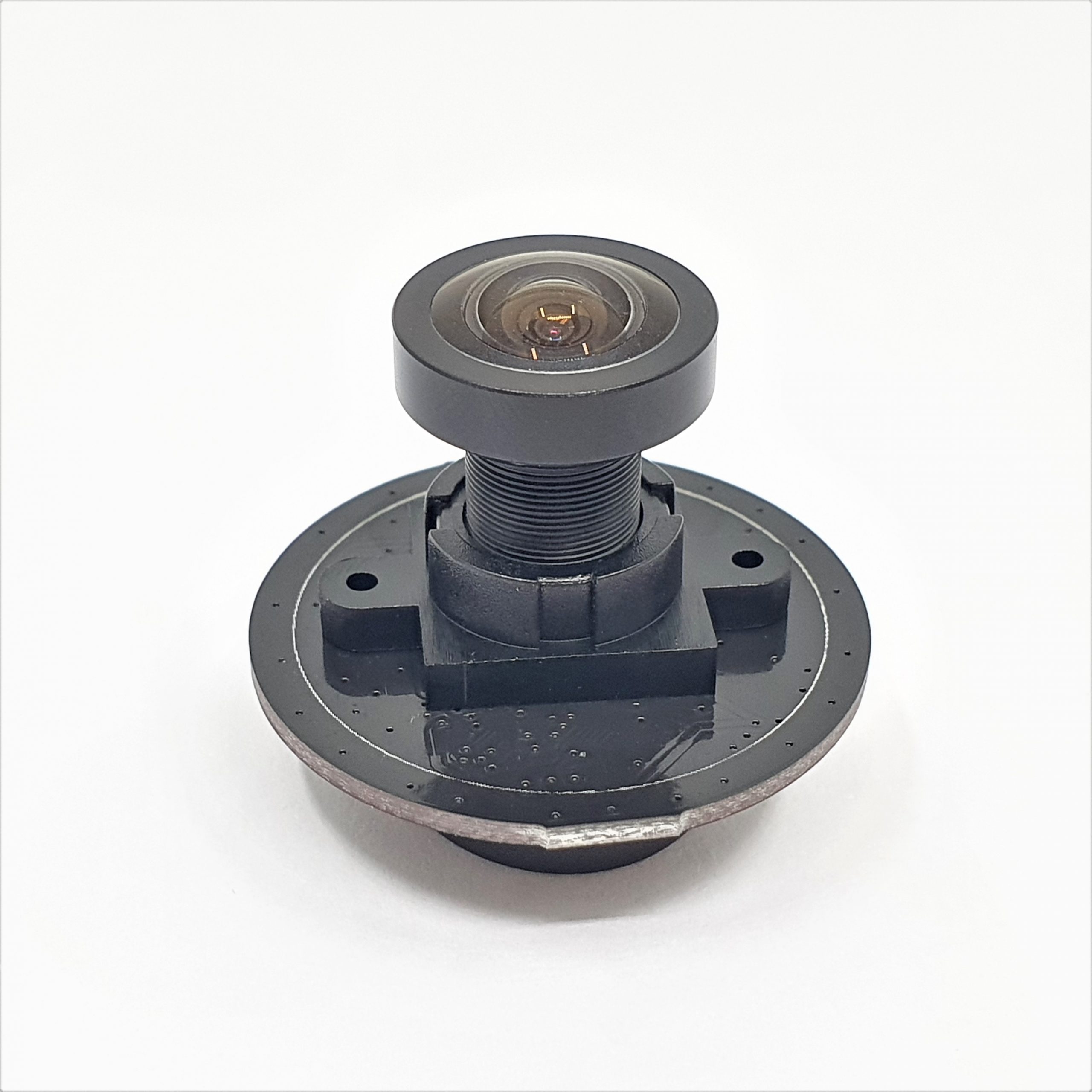

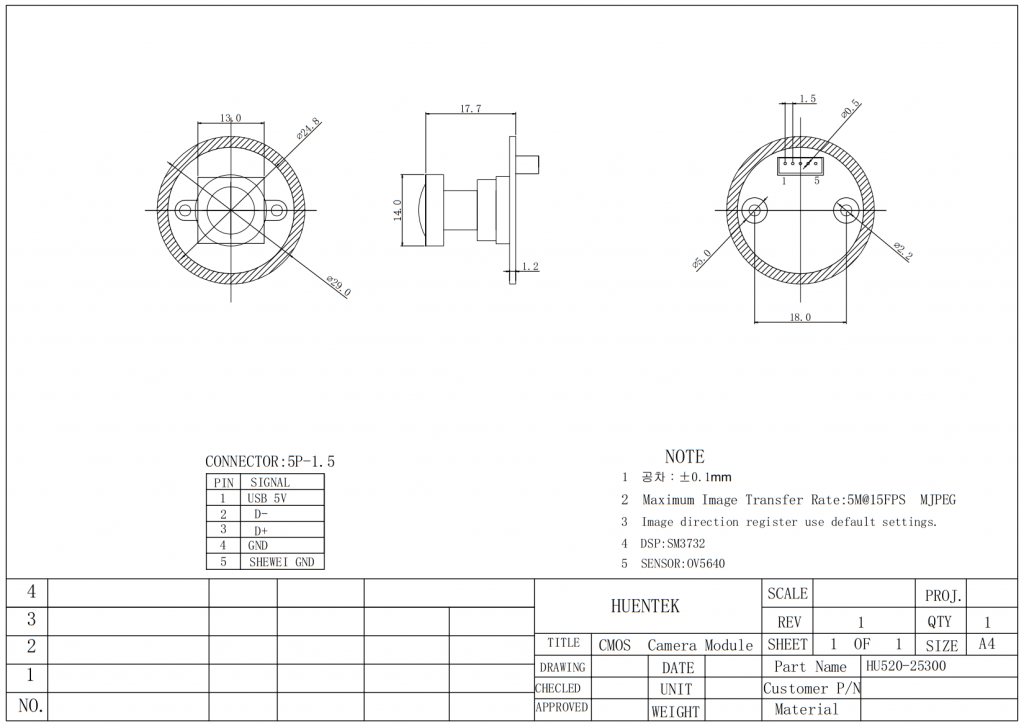

1-1. HU520A + 25300어안렌즈

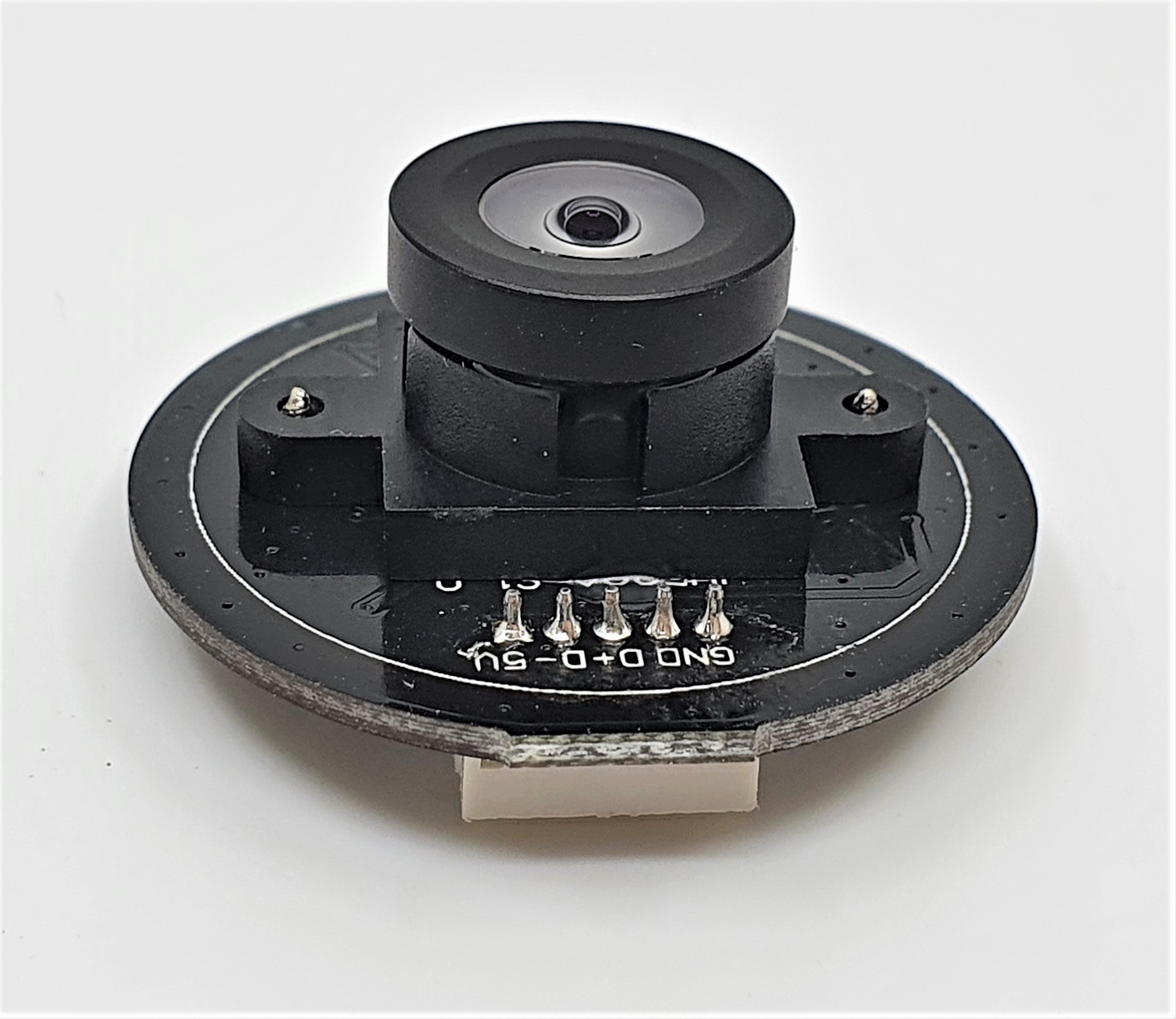

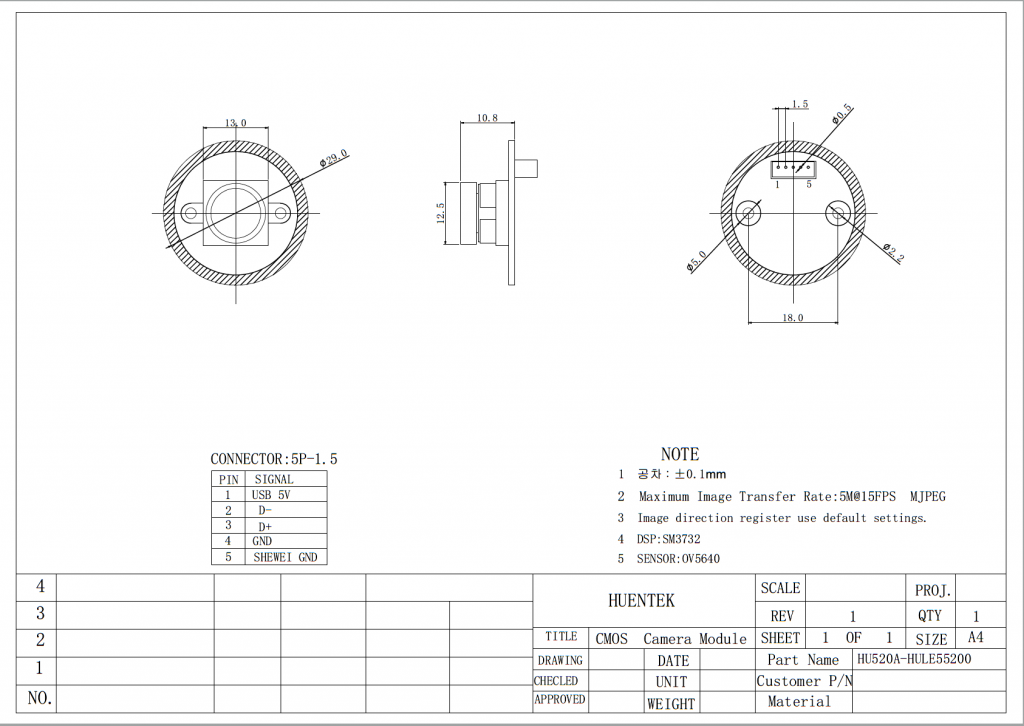

1-2. HU520A + 55200광각렌즈



2. Module Specification

ITEM Description
Product Name HU520A
Dimensions (mm)
(W x H x T)
ø29mm
Max RESOLUTION 2592×1944
Image Sensor
Size (inch)
1/4″ (3:4)
Sensor OV5640
Max Image Transfer Rate 10FPS @ 2592×1944
30FPS @ 1920×1080
30FPS @ 1280X720
OUTPUT Format Support YUV MJPG
Focus FIX
AEC/AGC/White Balance AUTO
Interface USB 2.0
UVC V1.0
Operating Temperature ( Operation )  -10℃ ~ 70℃
Temperature (Stable Image)  0℃ ~ 50℃
Power Consumption
Standby / Operating
130mA@5V
OS Windows, Mac OS, Linux, Android  etc.



3. Lens

3-1. 25300어안렌즈

Lens P/N HULE25300
Sensor Size 1/4″
Resolution 5M
Recommended Sensor P/N OV5640
Construction 8G
F/No 2.8
EFL ( mm ) 2.7
Optical FOV Vertical 187
Horizontal 150
Diagonal 210
TV Distortion -134.00%
Mount M8
Diameter (mm) 14.0



3-2. 55200광각렌즈

Lens P/N HULE55200
Sensor Size 1/4″
Resolution 5M
Recommended Sensor P/N OV5640
Construction 2G3P
F/No 2.4
EFL ( mm ) 1.7
Optical FOV Vertical 92
Horizontal 126
Diagonal 166
TV Distortion -79.80%
Mount M8
Diameter (mm) 12.5
