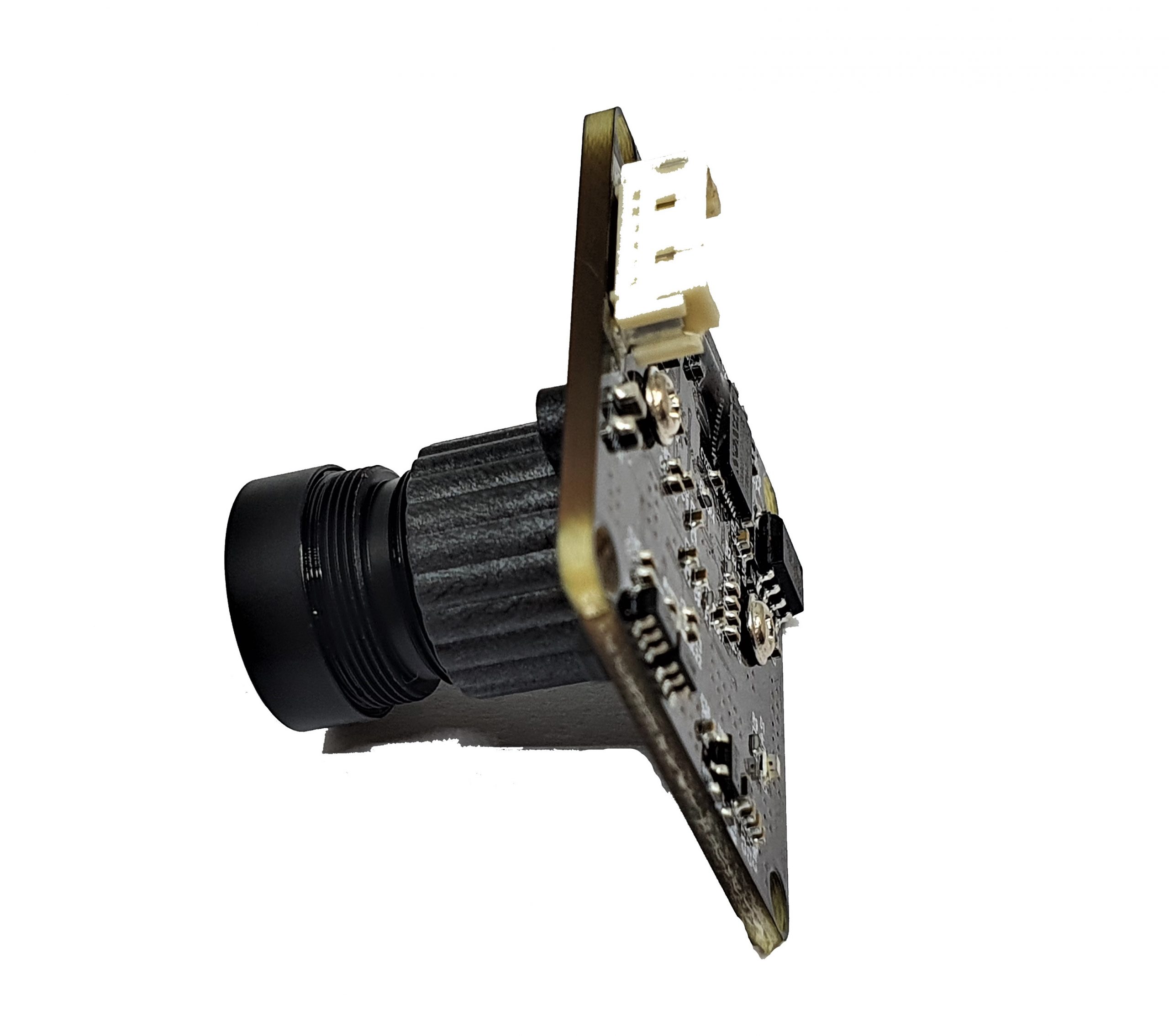

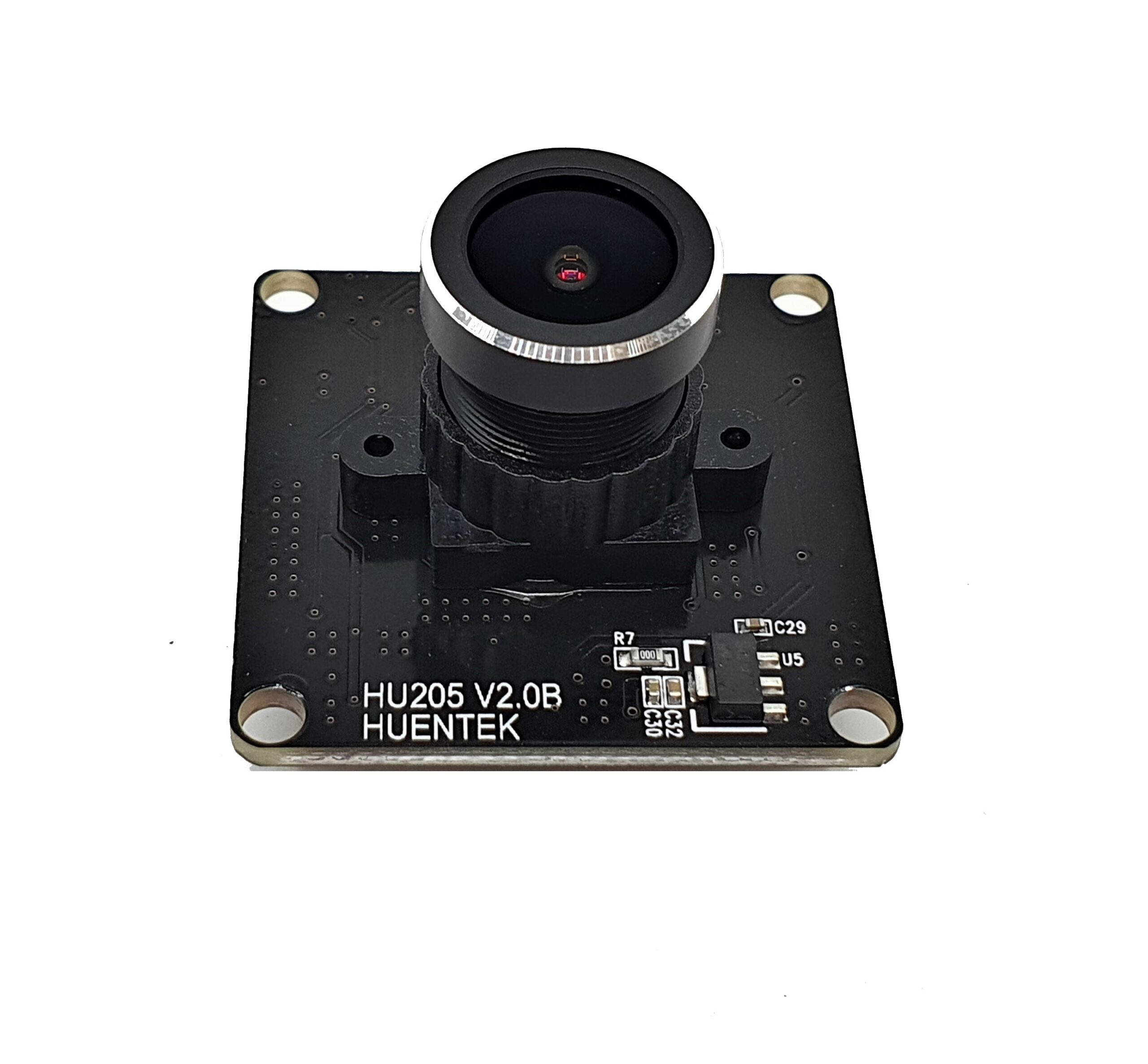

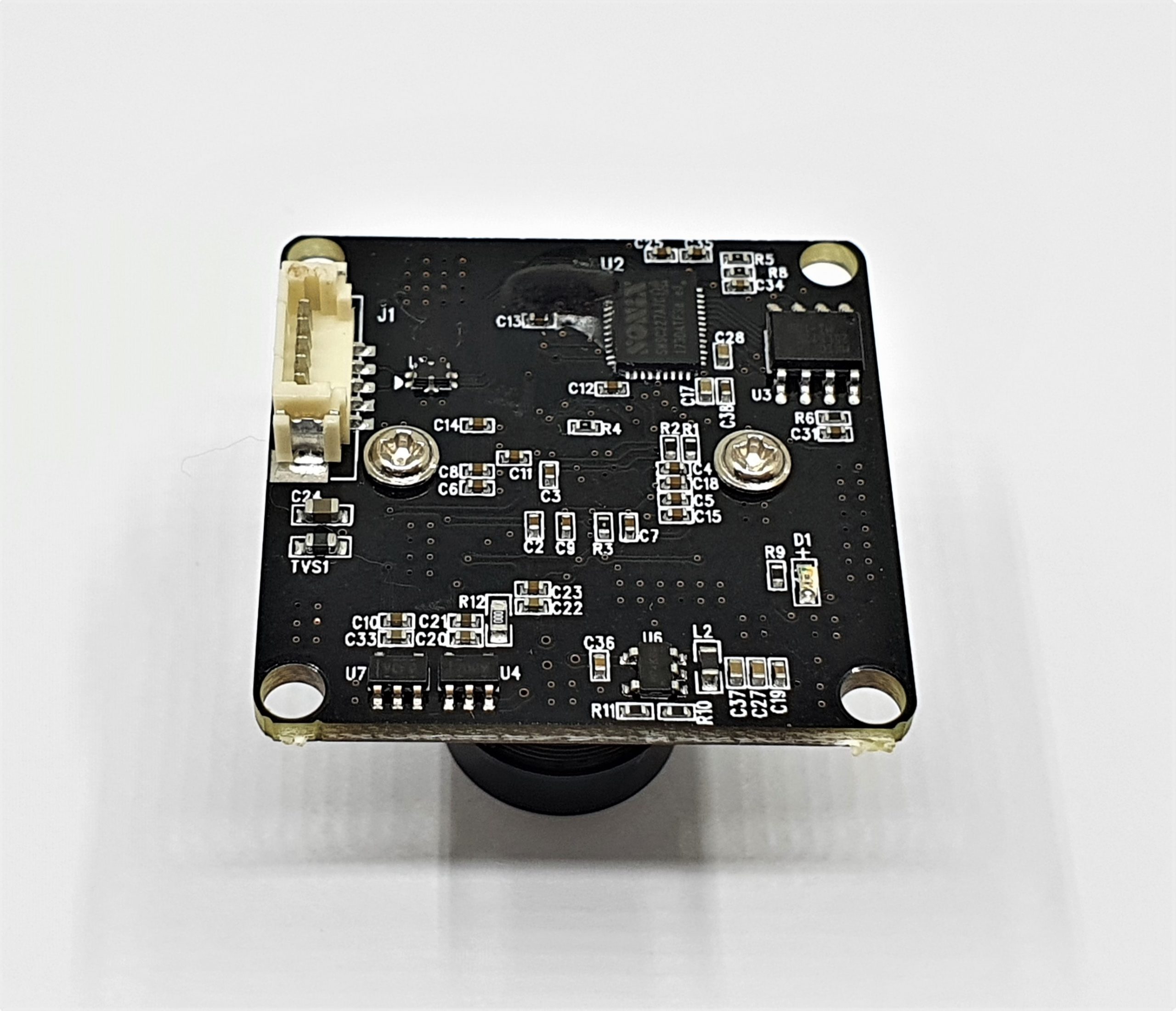

HU205

FHD 30FPS USB CAMERA

설명

렌즈는 51300, 24310 선택하실 수 있습니다.

또한 1/2.7″ 모든 렌즈와 호환됩니다.

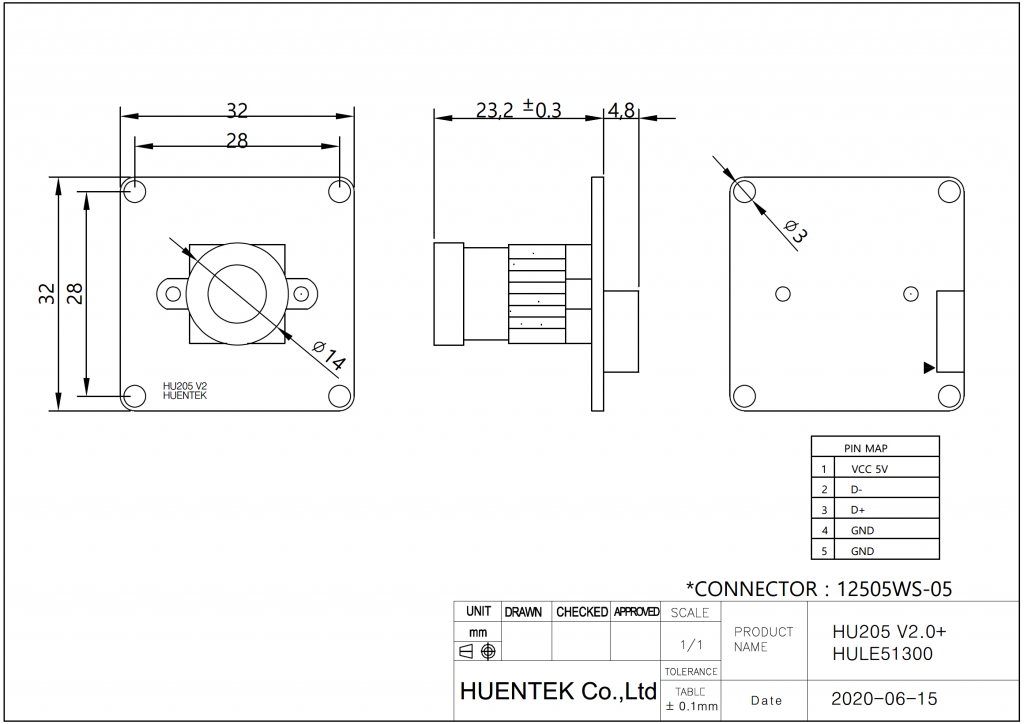

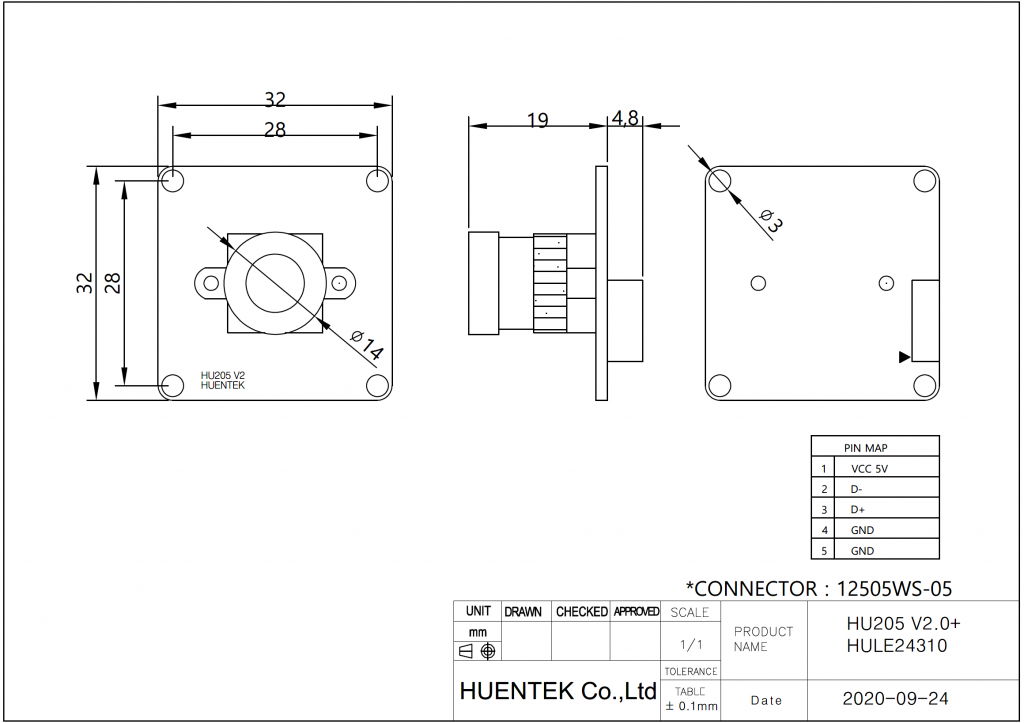

1.Dimmension











2. H/W Spec

Product Name HU205 S2.0
Dimensions (mm)
(W x H x T)
32x32xTBD
RESOLUTION 1920×1080
Image Sensor
Size
1/2.7
Sensor OV2710
Max. Image Transfer Rate 30FPS @ FHD
OUTPUT Format Support YUV MJPG
Focus FIX
AEC/AGC/White Balance AUTO
Interface USB 2.0
Operating Temperature ( Operation )  -30 ~ 70
Temperature (Stable Image)  0 ~ 50
Power Consumption
Standby / Operating
TBD
OS Windows, Mac OS, Linux, Android  etc.





3. Lens Spec

3-1. HULE51300    /product/hule51300/

Lens P/N HULE51300
Sensor Size 1/2.5″
Resolution 5M
Recommended Sensor P/N MI5100
Construction 3G2P
F/No 3.0
EFL ( mm ) 4.2
Optical FOV Vertical 54
Horizontal 68
Diagonal 83
TV Distortion 0.45%
Mount M12
Diameter (mm) 14.0





3-2. HULE24310    /product/hule24310/

Lens P/N HULE24310
Sensor Size 1/2.7″
Resolution FHD
Recommended Sensor P/N OV2710, IMX323,IMX291,IMX307
Construction 5G
F/No 2.4
EFL ( mm ) 6.1
Optical FOV Vertical 63
Horizontal 121
Diagonal 140
TV Distortion -48.00%
Mount M12
Diameter (mm) 14.0





4. 화질테스트

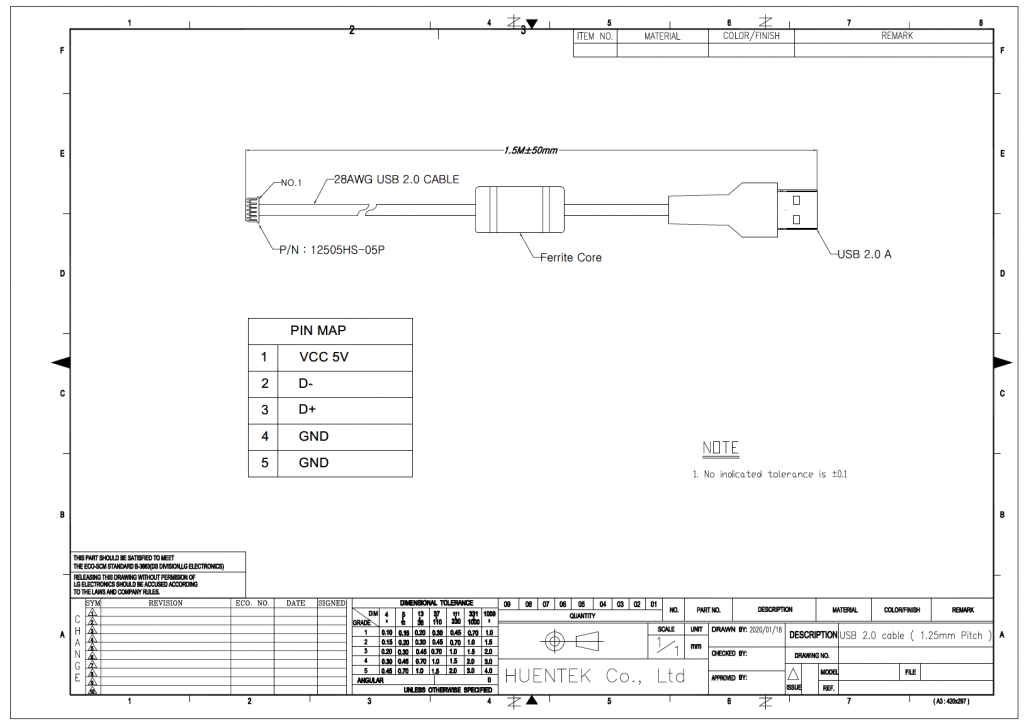

5. USB CABLE
