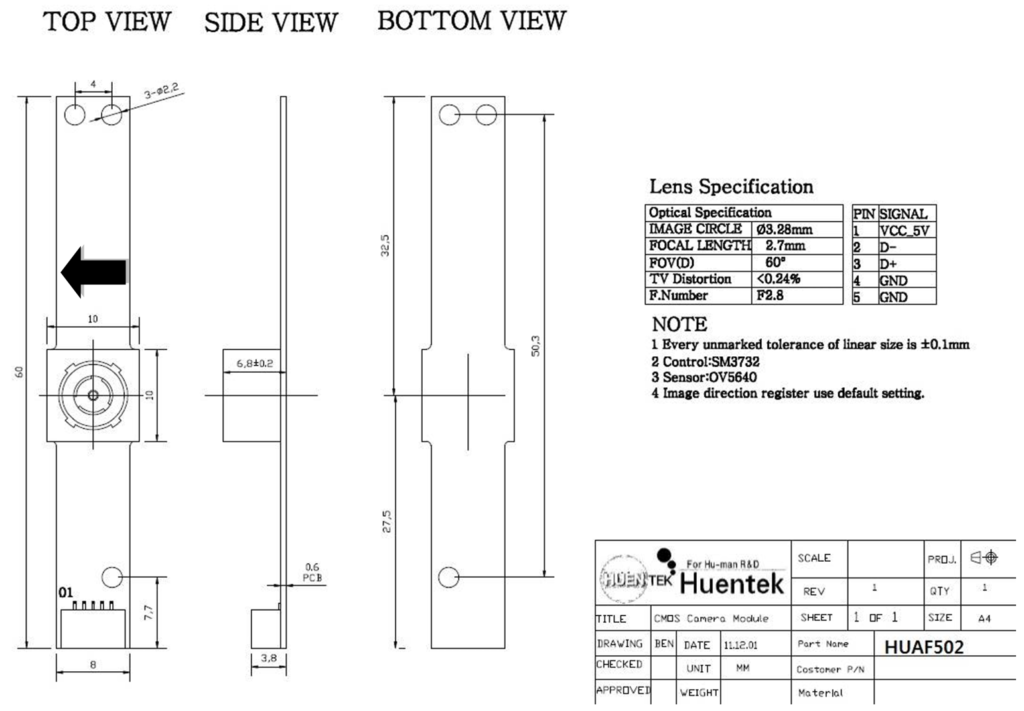

1. Module Dimension
2. Spec.
| ITEM | Description | ||
| Product Name | HUAF502 | ||
| Dimensions (mm) (W x H x T) |
60x8x7 | ||
| Max RESOLUTION | 2592×1944 | ||
| Image Sensor Size (inch) |
1/4″ (3:4) | ||
| Sensor | OV5640 | ||
| Max Image Transfer Rate | 2592*1944 15fps 2048*1536 15fps 1600*1200 15fps 1280*960 30fps 1280*720 30fps 1024*768 30fps 640*480 30fps 320*240 30fps |
||
| OUTPUT Format Support | YUV MJPG | ||
| Focus | AUTO | ||
| AEC/AGC/White Balance | AUTO | ||
| Interface | USB 2.0 UVC V1.0 |
||
| Operating Temperature ( Operation ) | -10℃ ~ 70℃ | ||
| Temperature (Stable Image) | 0℃ ~ 50℃ | ||
| Power Consumption Standby / Operating |
220mA@5V | ||
| OS | Windows, Mac OS, Linux, Android etc. | ||
| F/NO | 2.8 | ||
| FOV | 60 |
