설명

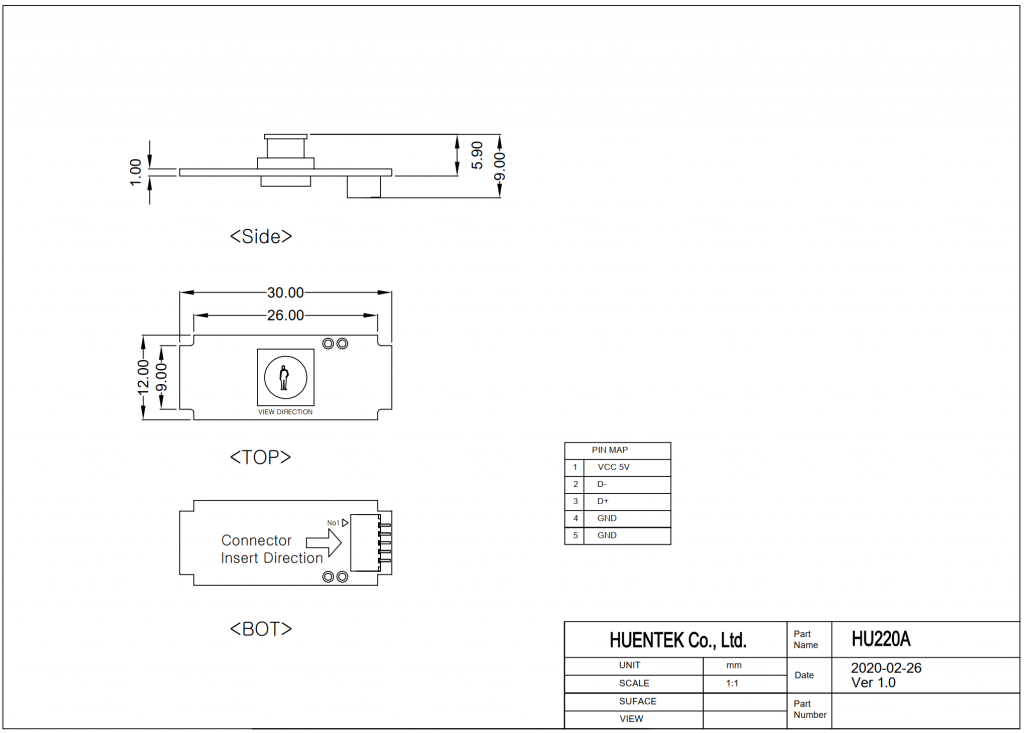

1. Dimension
2. Module Spec.
| ITEM | Description | ||

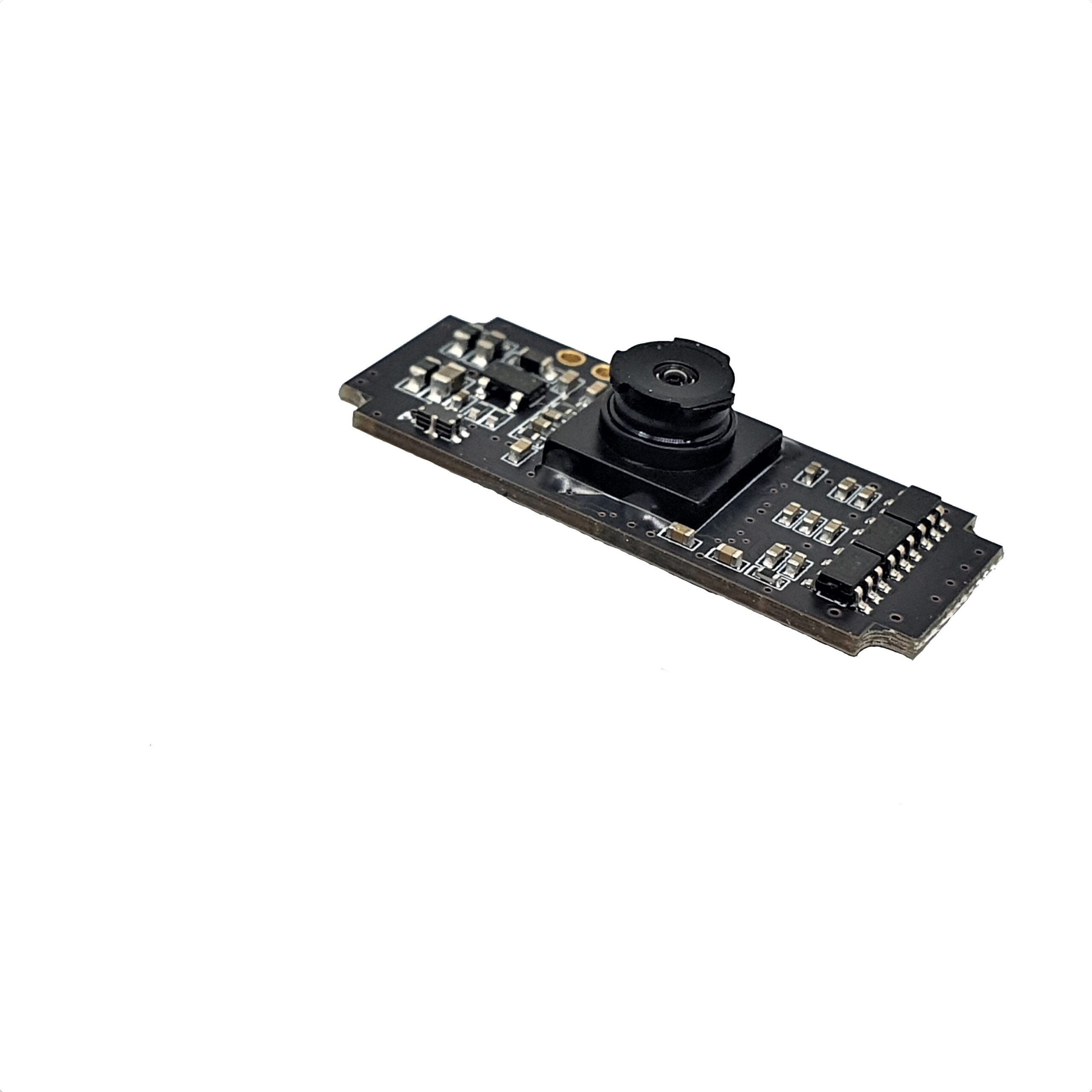

| Product Name | HU220(A) | ||
| Dimensions (mm) (W x H x T) |
30x12x6 | ||
| Max RESOLUTION | 1920×1080 | ||
| Image Sensor Size (inch) |
1/4″ (16:9) | ||
| Sensor | OV2732 | ||
| Max Image Transfer Rate | 60FPS @ FHD | ||
| OUTPUT Format Support | YUV MJPG | ||
| Focus | FIX | ||
| AEC/AGC/White Balance | AUTO | ||
| Interface | USB 2.0 UVC V1.0 |
||
| Operating Temperature ( Operation ) | -10℃ ~ 70℃ | ||
| Temperature (Stable Image) | 0℃ ~ 50℃ | ||
| Power Consumption Standby / Operating |
Standby 5mA@5V
Operating 195mA@5V |
||
| OS | Windows, Mac OS, Linux, Android etc. | ||
| F/NO | 2.4 | ||
| FOV | 120 |

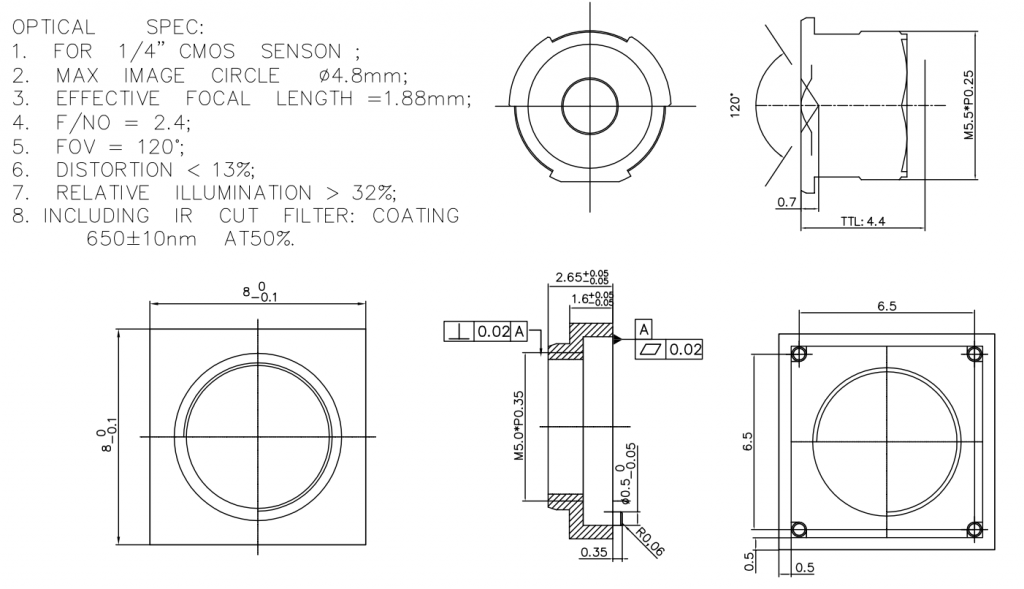

3. Lens
4. Test
