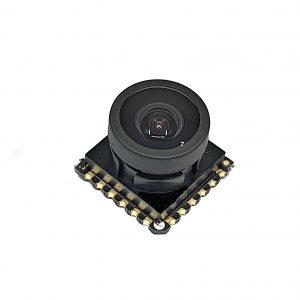

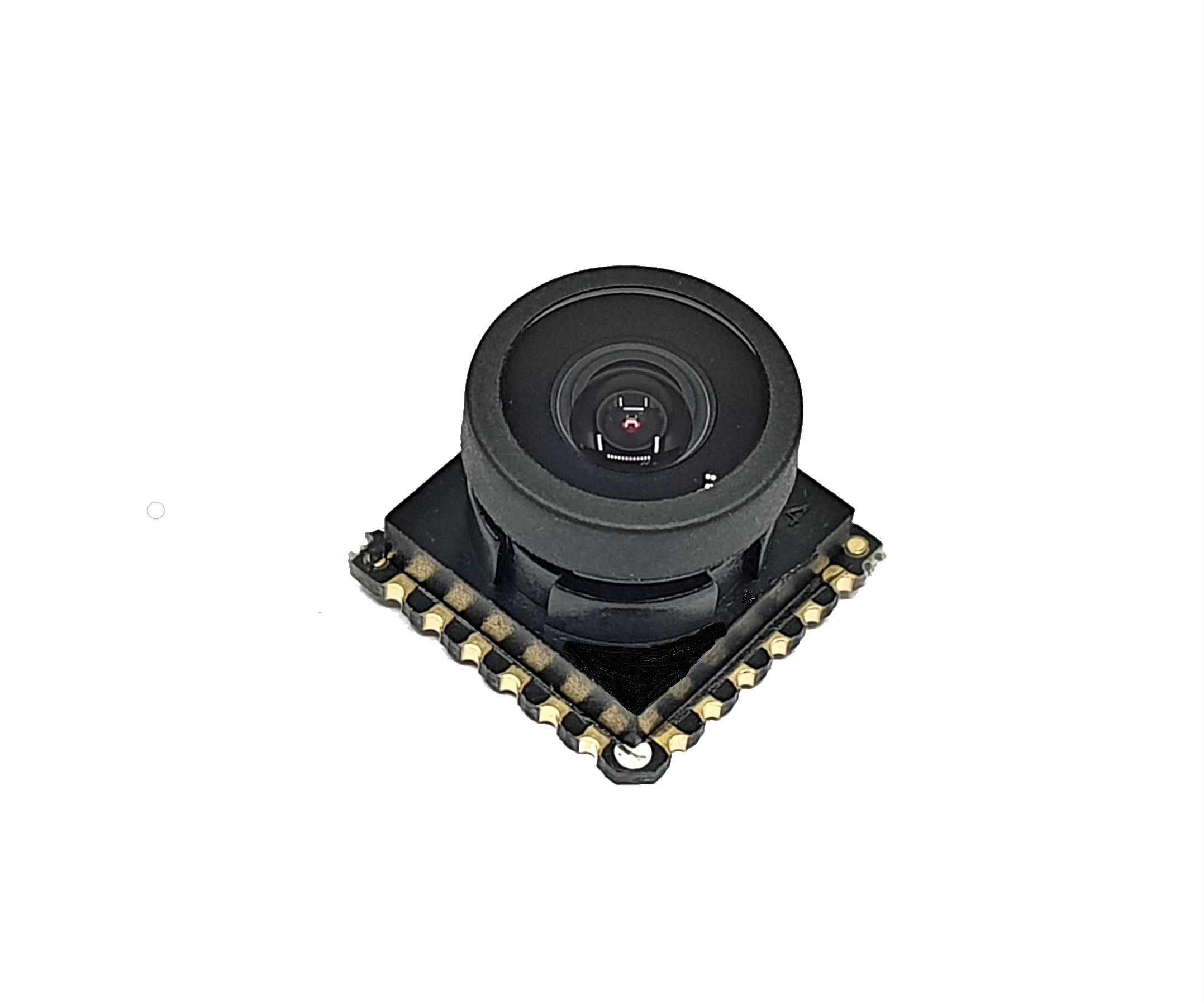

HUV9500

FOV D 166º VGA CCM CAMERA

Categories: ,

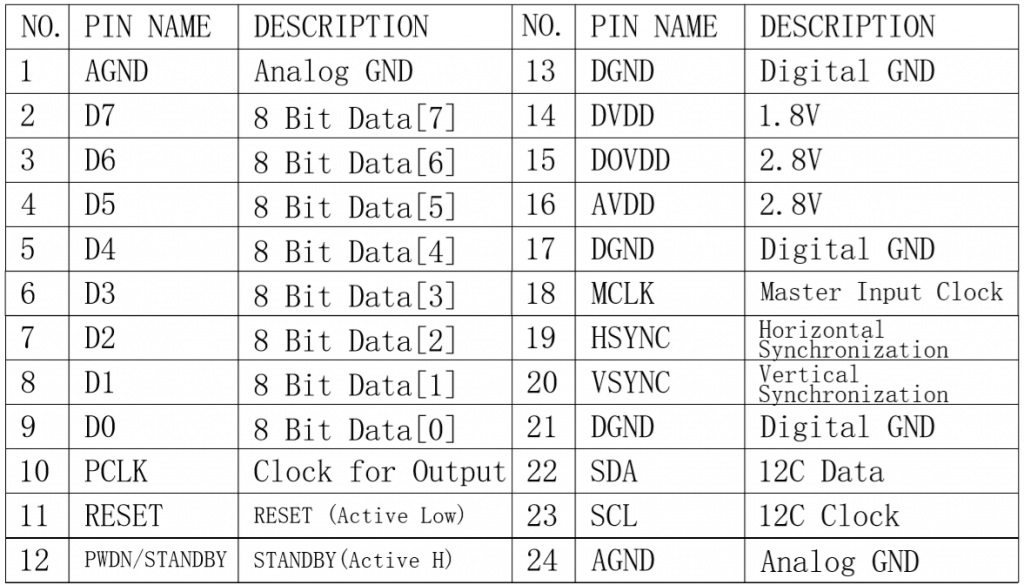

설명

VGA 1/4″ CCM MODULE

Module No.

HUV9500

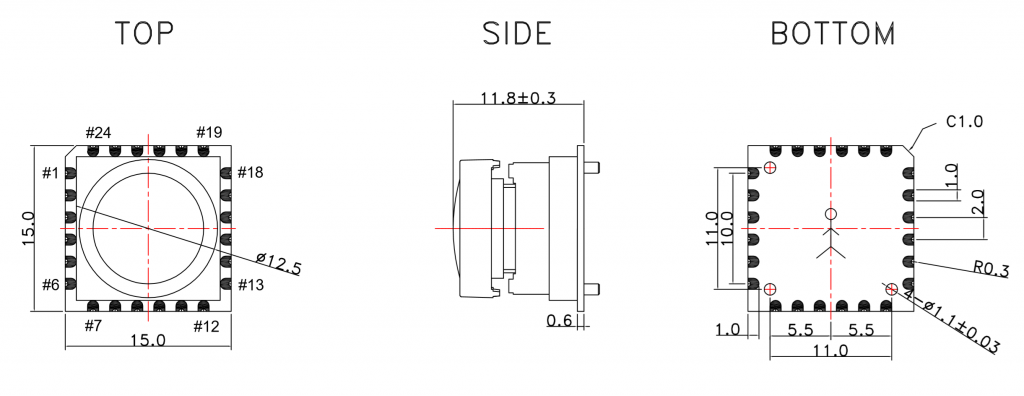

Module Size

15mm × 15mm × 12mm

Sensor Type

CMOS VGA 1/4″ POA030R

Active Array Size

640 X 480

Power supply

DVDD

1.5V/1.8V

AVDD

2.8V

HVDD

1.8~3.3V

Lens Construction

2G2P IR

F/No

=2.2

EFL

1.38

BFL(OPTICAL)

2

FB

1.5

Optical FOV

Vertical

105°

Horizontal

135°

Diagonal

166°

TV Distortion

H : -44.8% , V : -23.7%

Effective Pixel Array

656 x 496

Pixel size

5.55 um x 5.55 um

Effective Image Area

3.64 mm x 2.752 mm

Optical Format

1/4″

Sensitivity

2.93 [V/Lux.sec]

Max. Clock frequency

27Mhz

Operating Temp. (Fully Functional Temp)

-40 ~ 105 []

Output Formats

CCIR656, 8bit YCbCr422,

8bit RGB565, 9bit RGB Bayer, 9bit Mono.

Max. Frame Rate

VGA

30fps @ 27MHz



60fps @ 27MHz ( bayer only )

S/N Ratio

44.2 [dB] @ 60 degree

Dynamic Range

51 [dB] @ 60 degree

Dark Signal

25.2[mV/sec]

Substrate

PCB

IC Assembly

PLCC

Power Consumption

67[mW] @ Dynamic

6.8[uW] @ Standby

Package

Anti-electrostatic tray
